9" AHD 1080P Backup Camera Monitor Only, 4-Channel Quad Split Screen

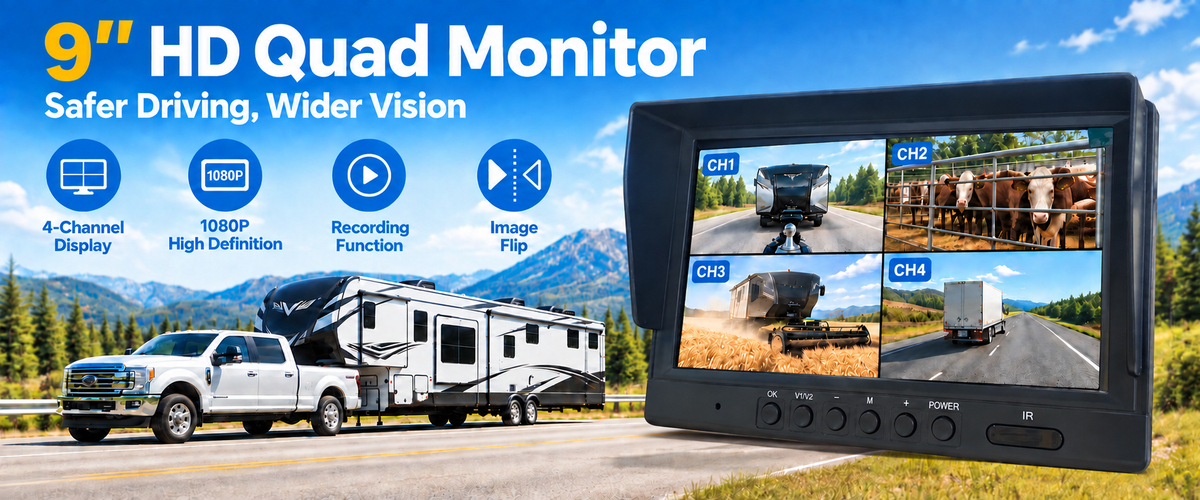

- 【9" 1080P 4-Split Backup Camera Monitor Only】9” 16:9 TFT LCD, 1920×1080, RCA input, 500:1 contrast, 350cd/m², 170° wide angle. 4 video inputs for simultaneous front/rear/left/right views, great for RV upgrade, IR remote included.

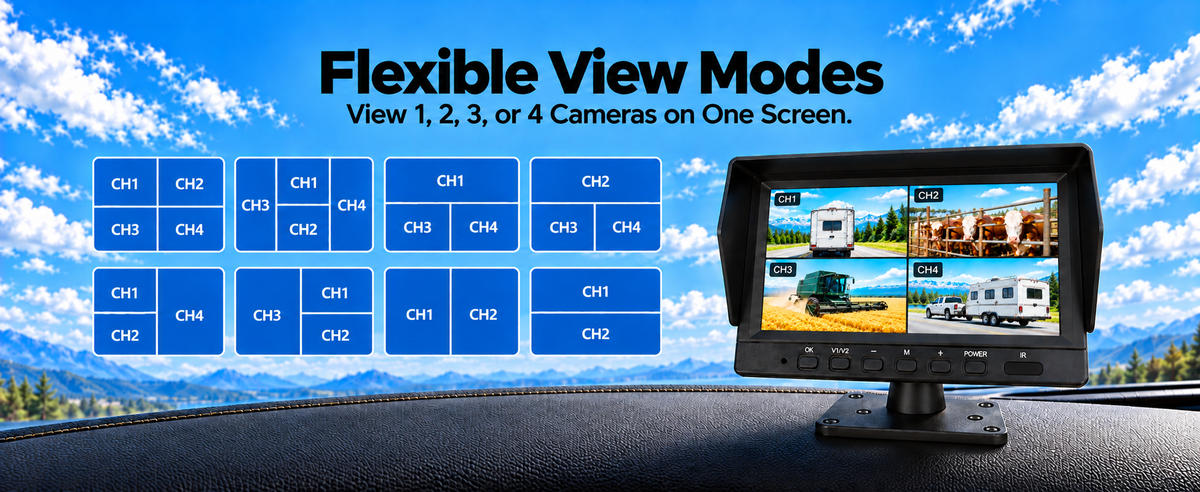

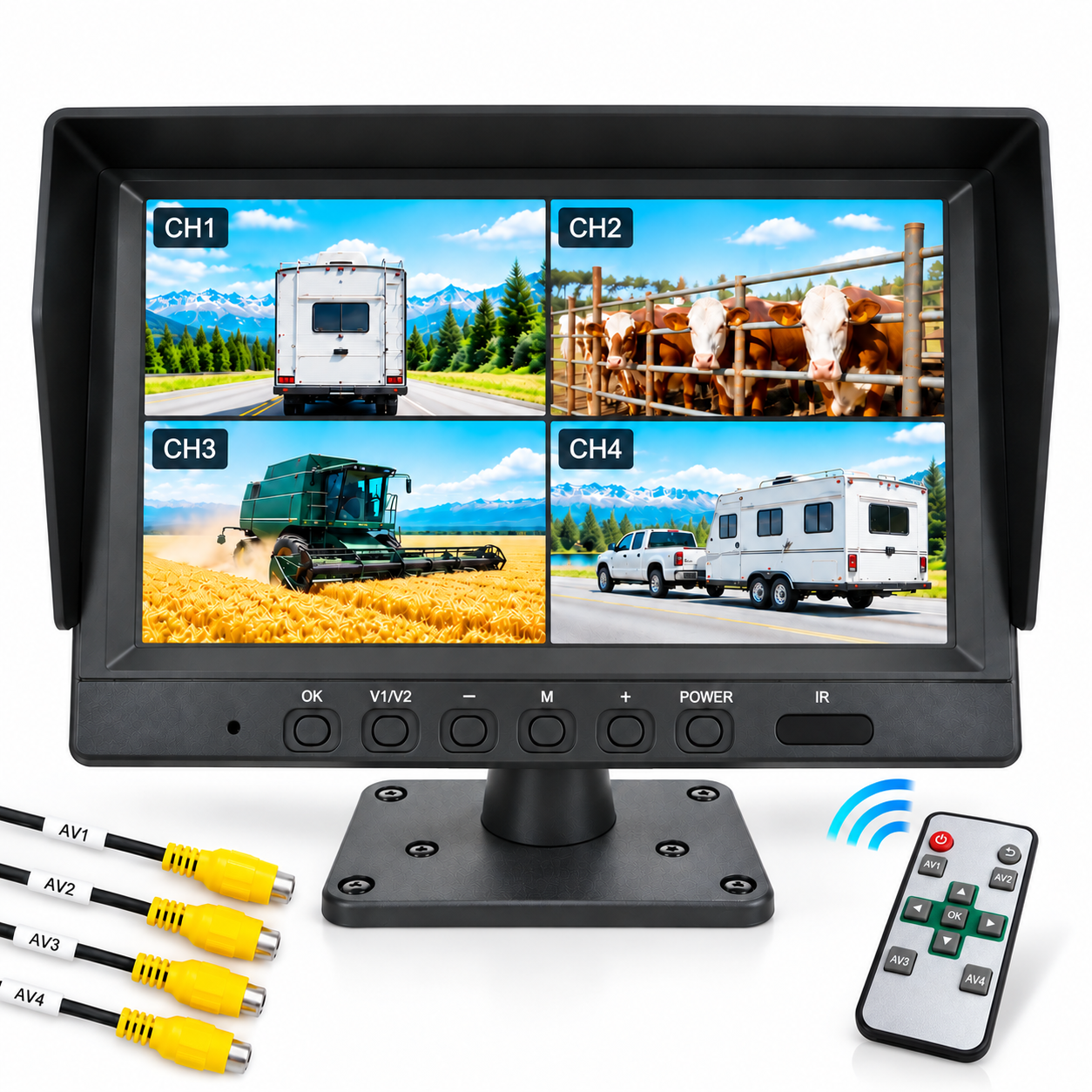

- 【4-Channel RCA Inputs & Drive with Peace of Mind】4 RCA camera channels (CH1-CH4) with trigger wires. Switch between 1/2/3/4 split views. Real-time blind spot footage, clear day & night.

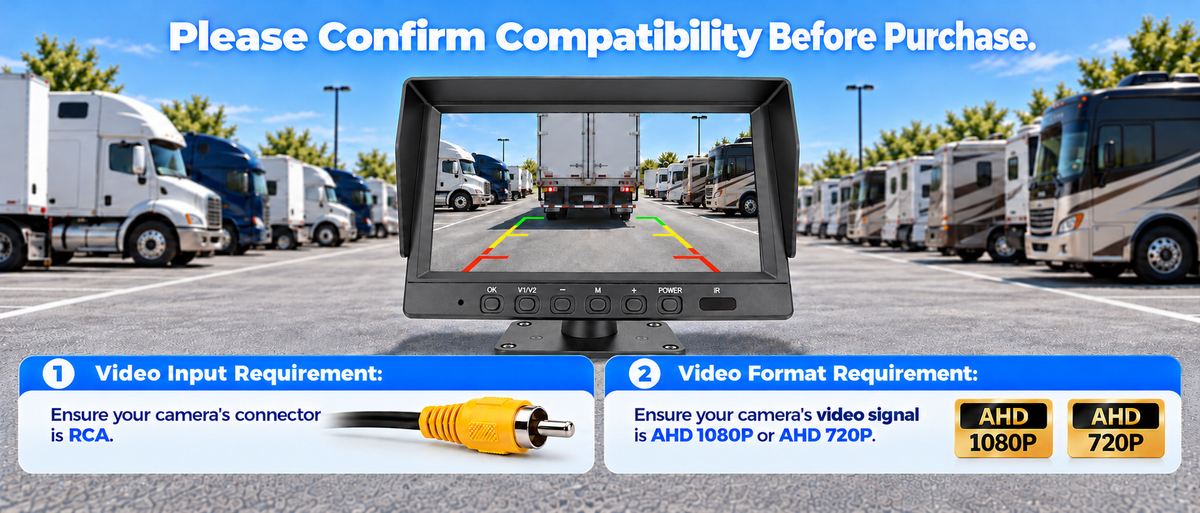

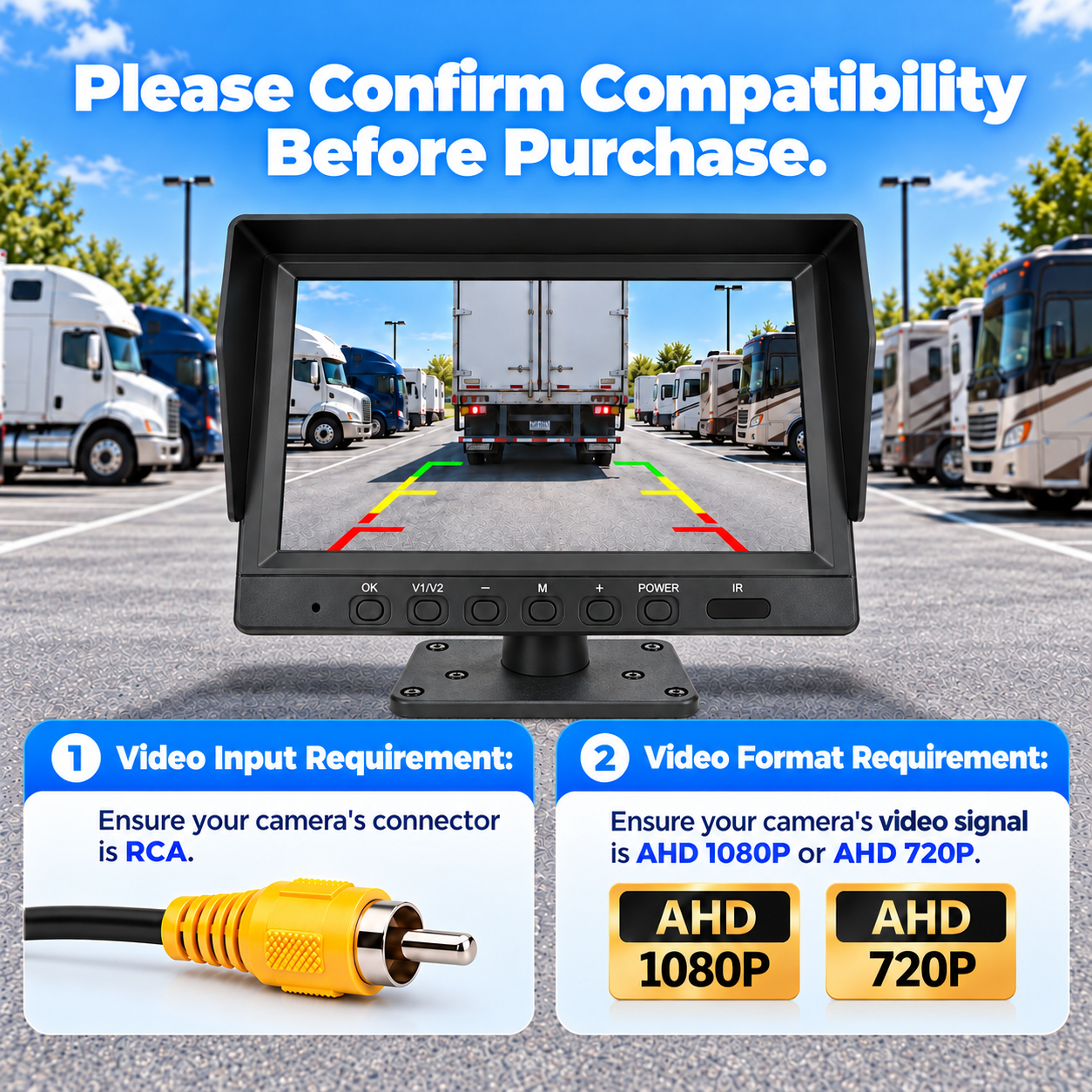

- 【AHD 1080P & 720P Compatible, 12V-36V】For AHD cameras. CVBS NTSC cameras yield low quality (not monitor fault). Multi-cameras must use identical video format, manual setting required. 12V–36V works for cars, SUVs, trucks, vans.

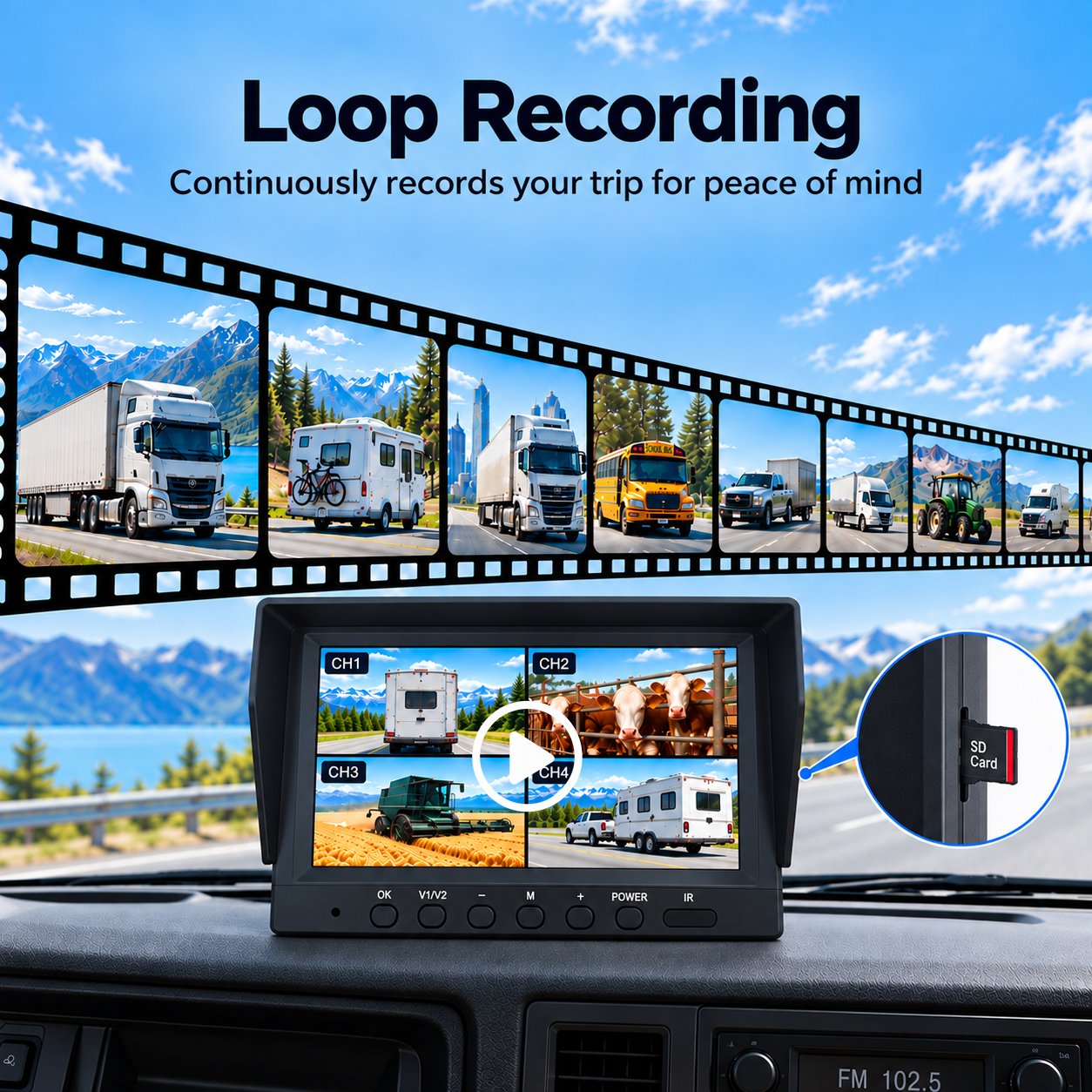

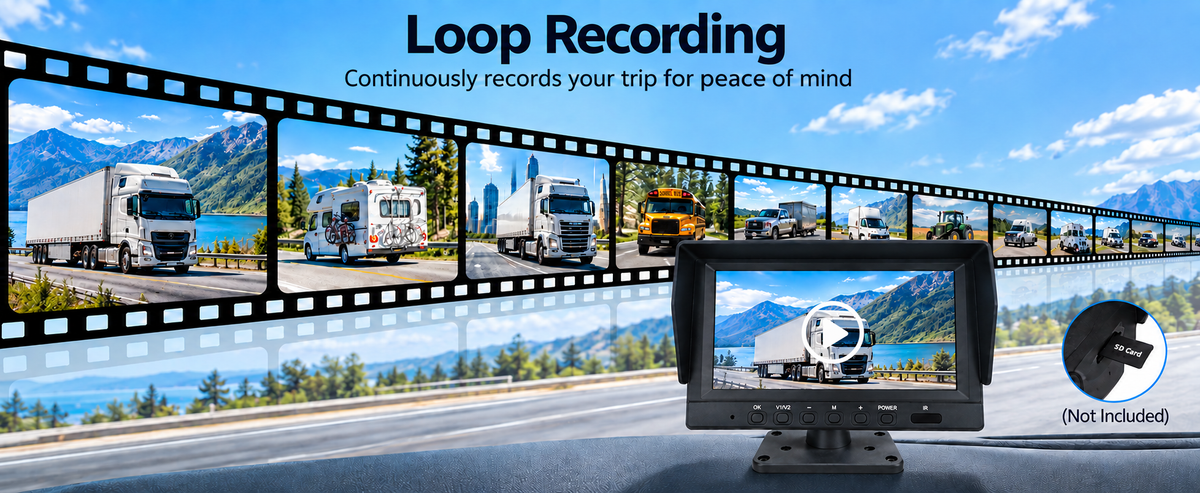

- 【Loop Recording & Evidence Protection】Supports SD card loop recording (SD card excluded). Auto record on power-up; auto overwrite old clips when full.

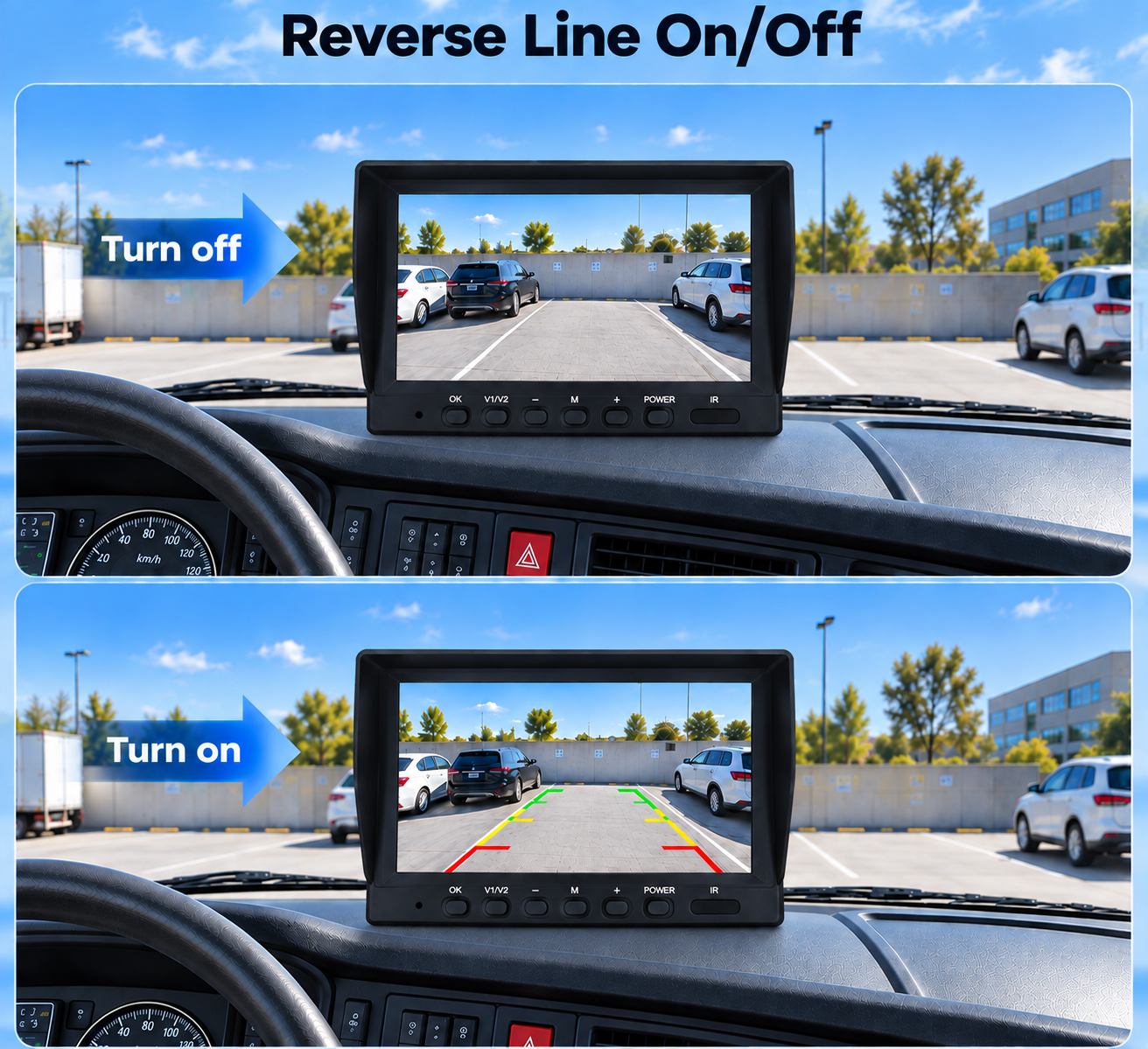

- 【Easy Control, Anti-Glare Design & Reverse Lines ON/OFF】Screen rotation/mirror, adjustable brightness/contrast/color. IR remote + anti-glare sunshade. Parking guidelines toggleable only for AV2 reversing input.

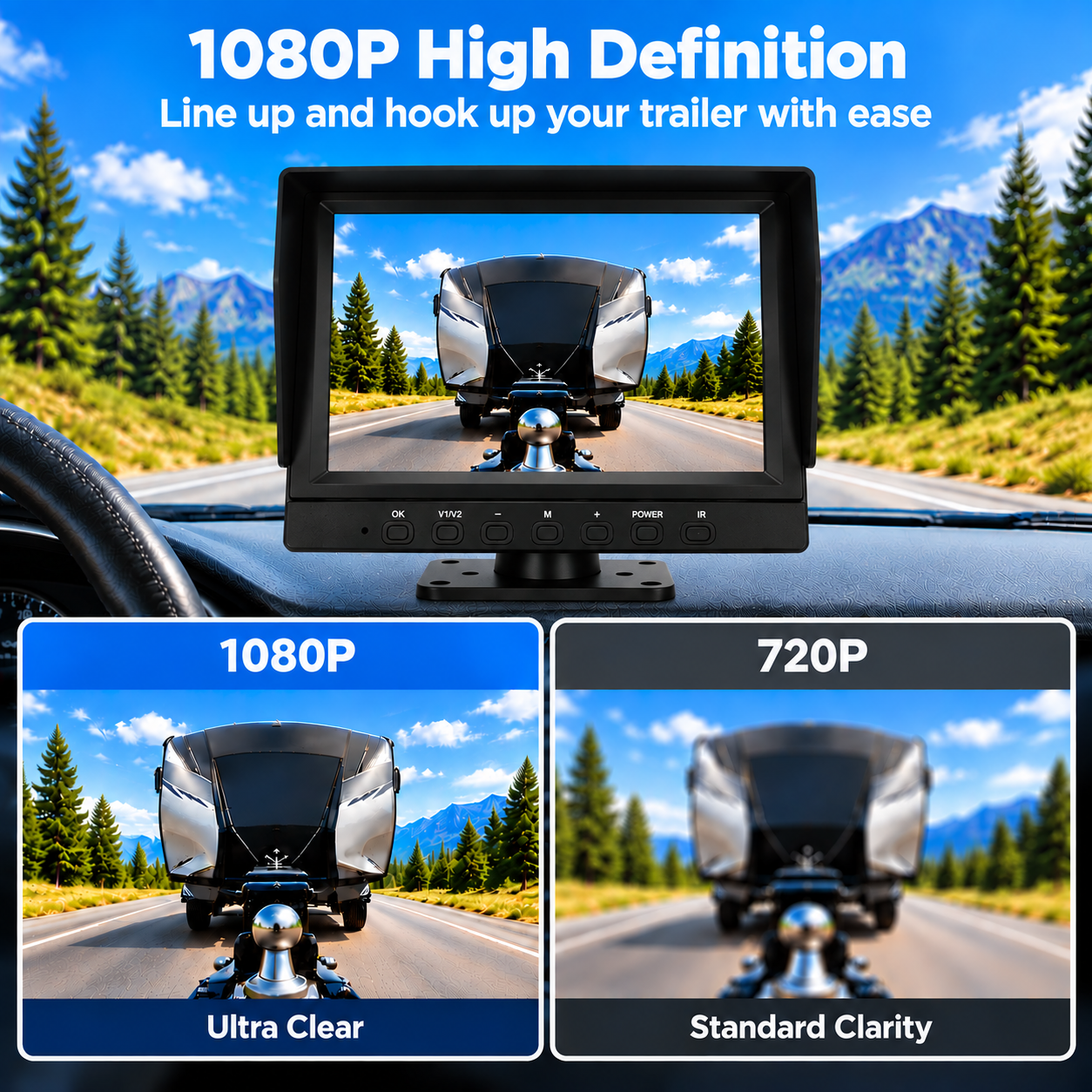

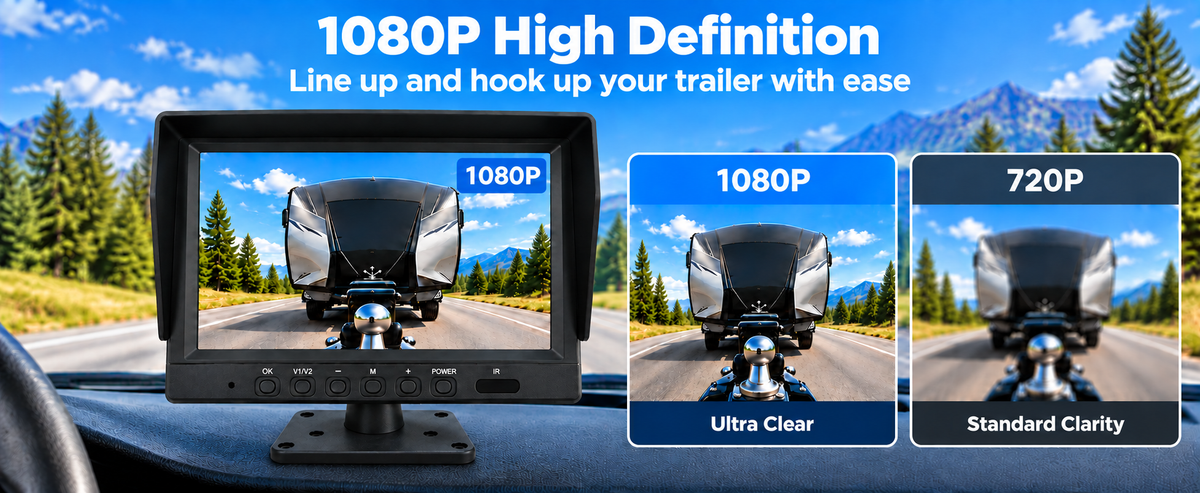

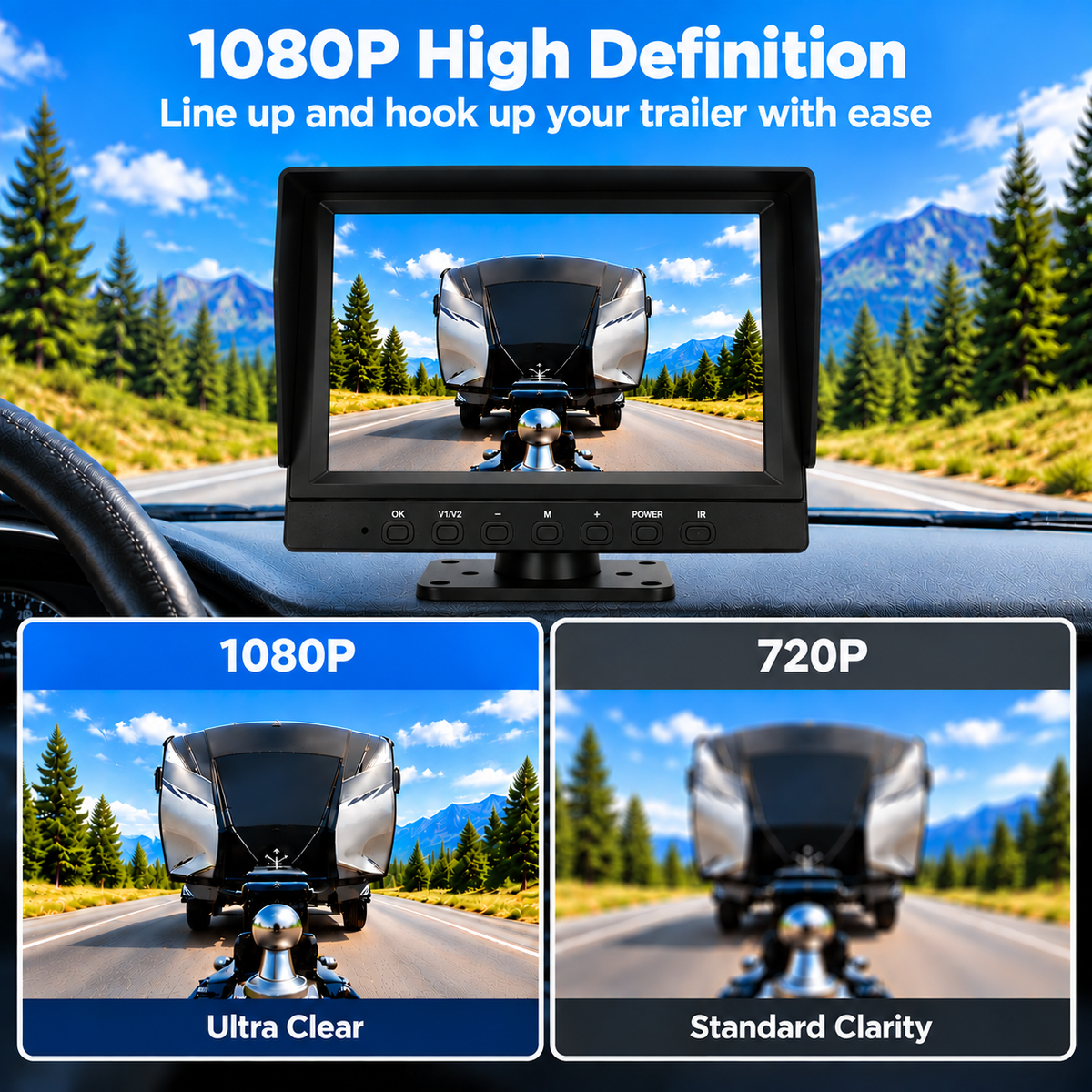

- 【Hitch Up with Ease】View hitch & trailer ball for one-time alignment, no spotter needed.

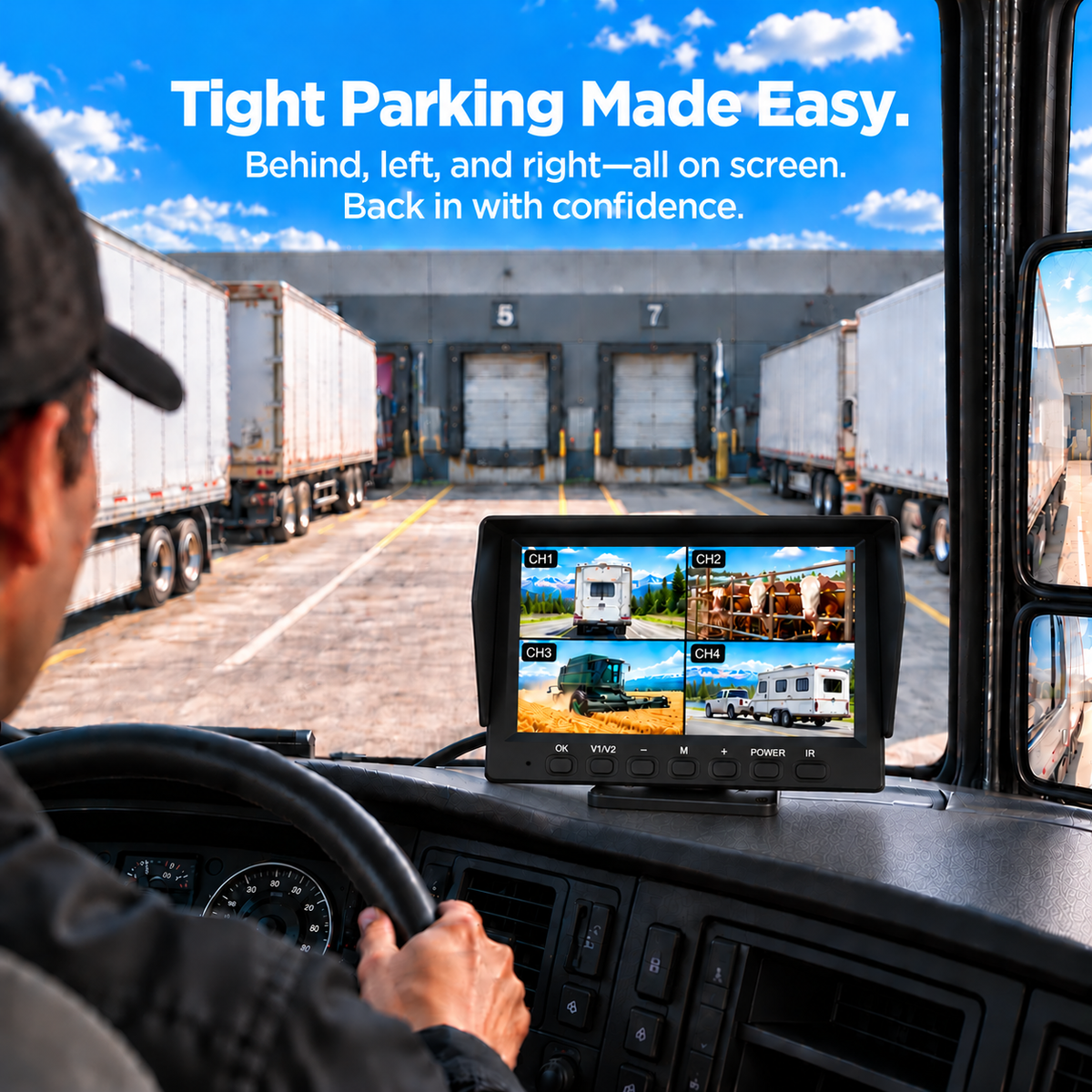

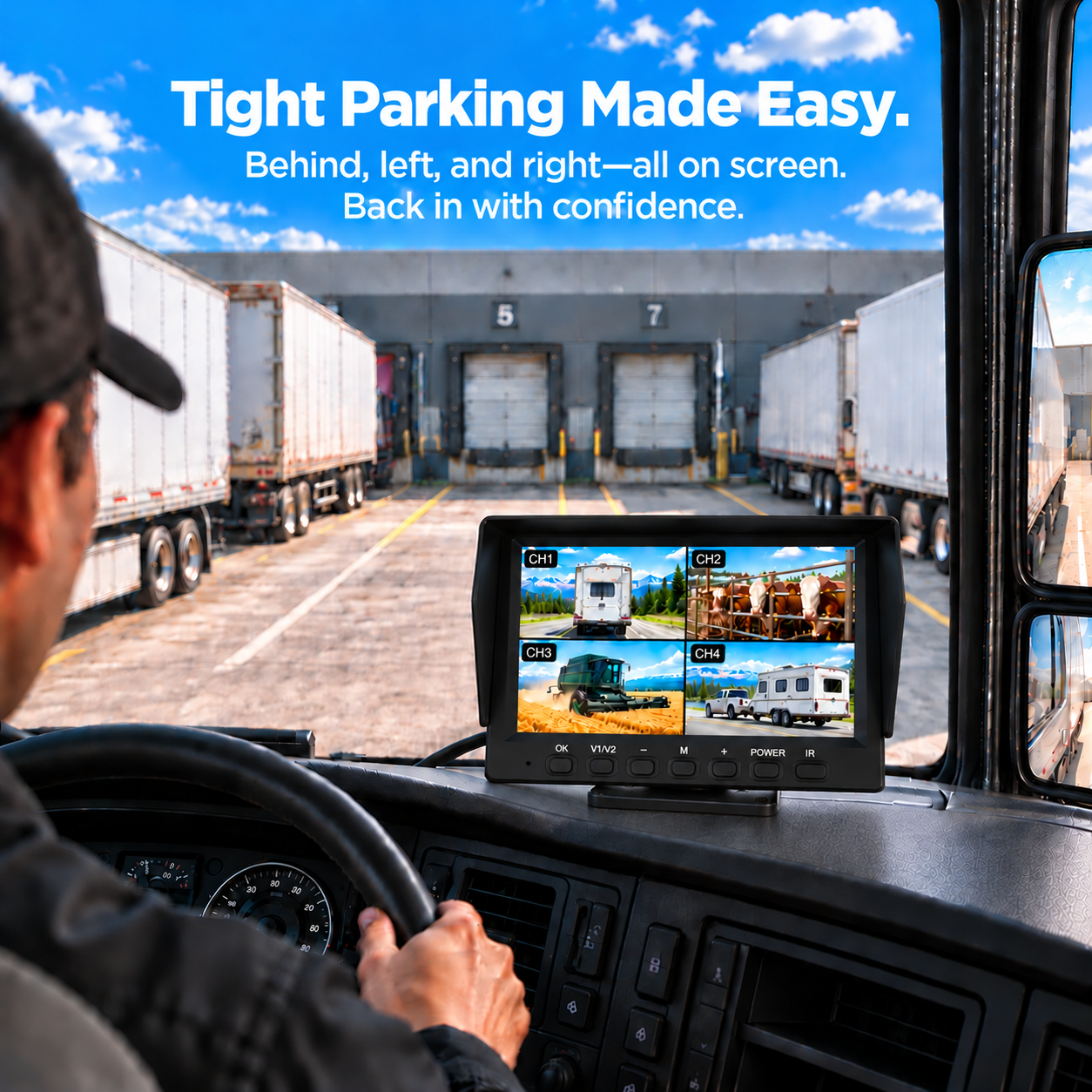

- 【Tight Parking Made Easy】Rear + side views help reverse into narrow spots confidently.
- 【Long Hauls, No Worries Behind You】Low-latency live rear view. No head-turning for lane changes, overtaking or reversing.
- Regular price
- USD 69.99
- Sale price
- USD 69.99
- Regular price
-
USD
Free Fast Shipping
24/7 Dedicated Support
30 Days Return
24 Months Warranty
FAQ

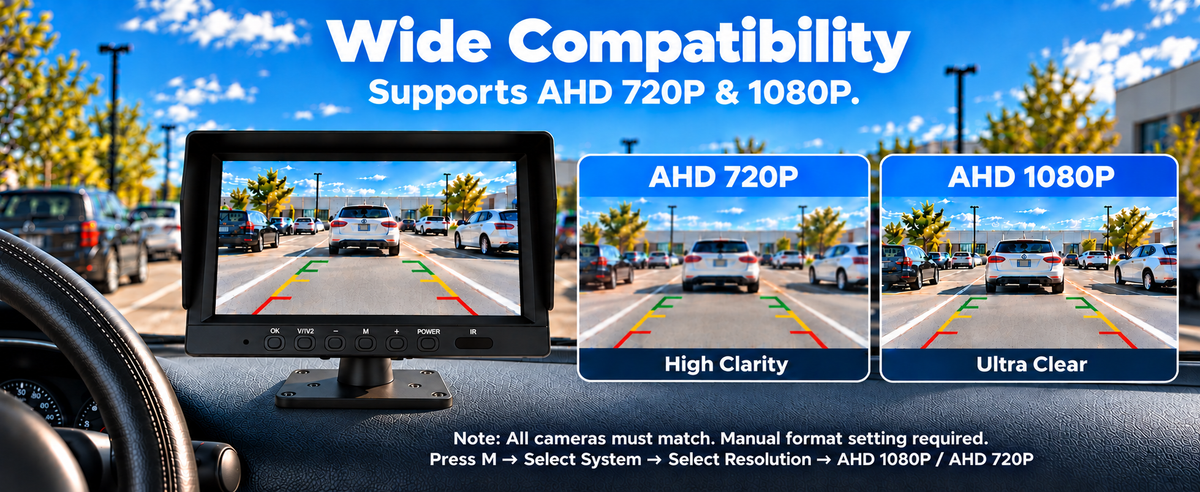

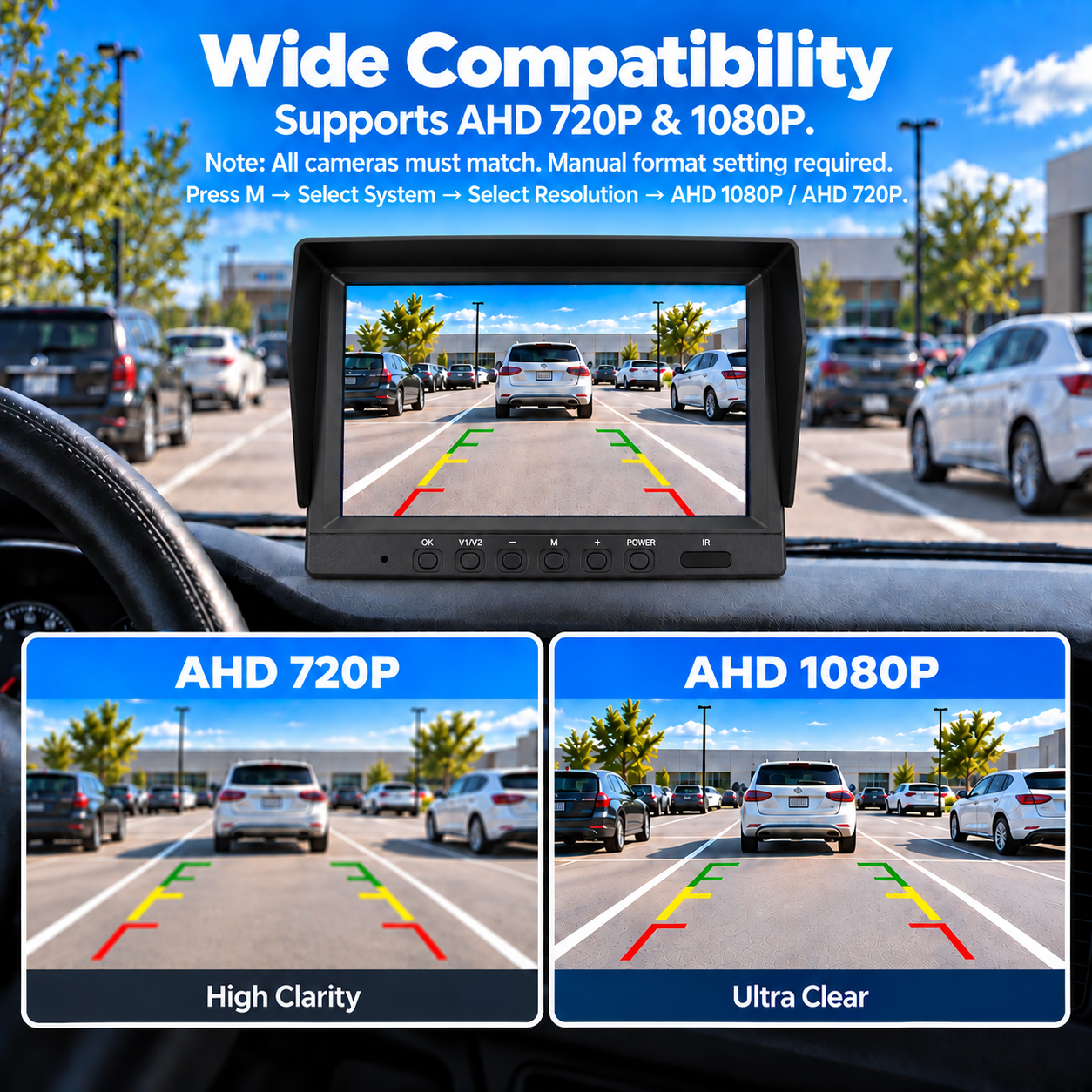

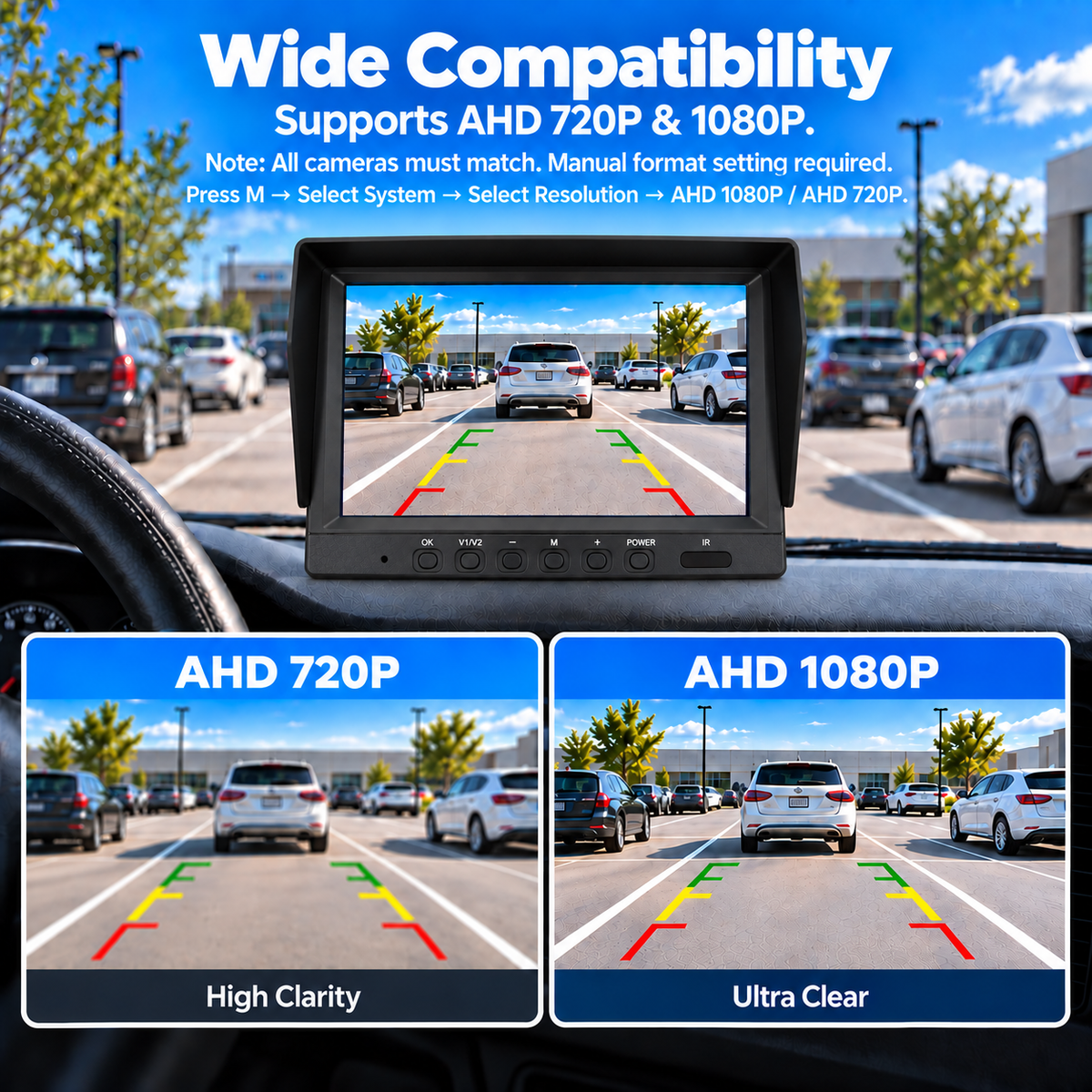

Match the monitor format to the camera: M → System → AHD 720P/1080P. All cameras must use the same format. Mixing 720P and 1080P may cause no display.
Black/glitchy usually means format mismatch. Press M → System → Resolution. Choose AHD 1080P/720P or PAL/NTSC until the image appears.

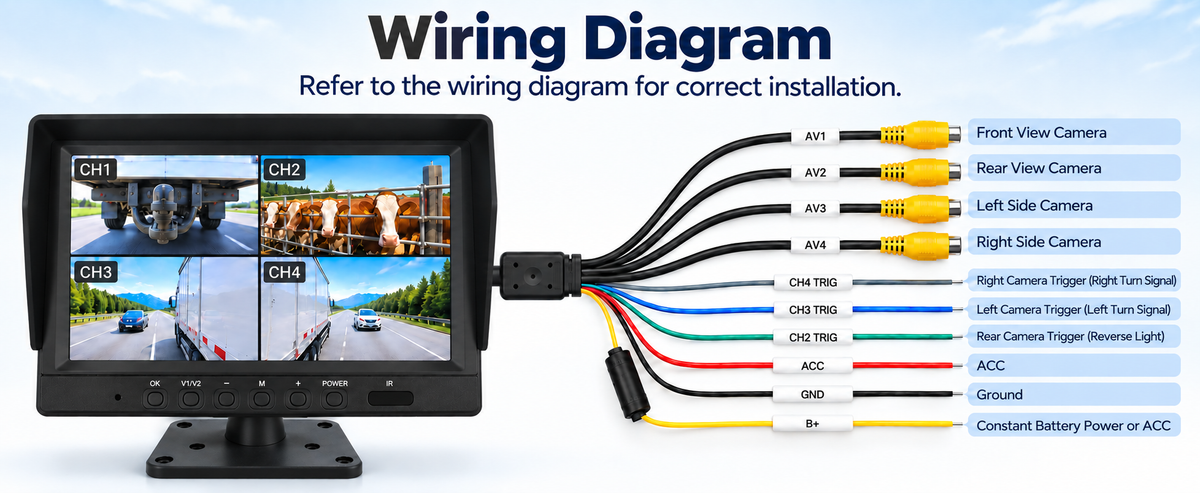

Trigger wires: CH2=Rear/AV2, CH3=Left/AV3, CH4=Right/AV4. If reverse shows left, CH3 is connected to the reverse light. Move the reverse trigger to CH2.
Guidelines only show on AV2/Rear when reverse is triggered, not CH1. If your camera has built-in lines, turn OFF: M → System Settings → Reversing Line OFF.
B+ must be connected to constant battery power to retain the clock. If B+ is connected to ACC, time will reset. If clock retention is not needed, connect B+ to ACC. Do not leave B+ unconnected, or the monitor may show no image.
